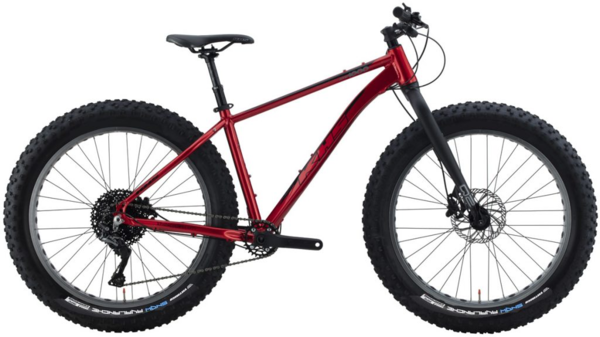

KHS 4 Season 1000
$1,499.99
$1,999.99
Details
- 12-speed
- Aluminum tubeless-ready wheel
- KSP-900-i dropper post
- Vee Avalanche tires
- Shimano Deore 12-speed rear derailleur
- Shimano Deore shifter
- Shimano CN-M6100 chain
- 30-tooth chainring
- Shimano CS-M6100, 10-51T cassette
- Shimano M4100 brake levers
Specs
| Frame | 6061 Aluminum w/Custom Formed T/T & D/T, 1.5 Tapered H/T, Replaceable Derailleur Hanger 12x197mm, Internal Cable Routing |
|---|---|
| Fork | Aluminum Straight Blade, 1.5 Taper, 15mm x 150mm Thru-Axle or Manitou Mastodon Pro 100mm or Carbon Fork Option |
| Rims | Aluminum 90mm w/Rectangular holes, Tubeless-Ready, 26x32H |
| Hubs |
Front: KT Aluminum Disc, Forged, Sealed Bearing, 15x150mm Thru-Axle Rear: Powerway Aluminum Disc, Forged, Sealed Bearing, Cassette, 12x197mm Thru-Axle |
| Spokes | 14G Black Stainless, 32x32 |
| Tires | Vee Avalanche, 26 x 4.8", 120TPI, Folding, Tubeless-Ready |
| Bottom Bracket | Outboard Cartridge Bearing |
| Crankset | Samox 2-pc Forged, 30T, Narrow Wide, S: 170, M-XL: 175 |
| Shifters | Shimano Deore, SL-M6100, Right Only, I-Spec EV |
| Rear Derailleur | Shimano Deore, RD-M6100 |
| Cassette/Freewheel | Shimano CS-M6100, 10-51T, 12-Speed |
| Chain | Shimano CN-M6100 |
| Brakes | Shimano MT410, Hydraulic Disc, 180/160mm Rotors, Wave 12 |
| Brake Levers | Shimano M4100, I-Spec EV |
| Handlebars | Aluminum 35mm Riser, 760 x 15mm |
| Tape/Grips | Q2 Lock-on |
| Stem | KHS Aluminum 3D Forged, Threadless 4-bolt, 35mm |
| Headset | Threadless 1-1/8~1.5 Tapered, Zero Stack |
| Seatpost | Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 31.6mm |
| Saddle | KHS Sport Dual Density Padding w/Handle |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Metallic Red / Medium | 756928919145 | 911570003 | 210000014069 |
| Metallic Red / Large | 756928919152 | 911570006 | 210000014066 |
