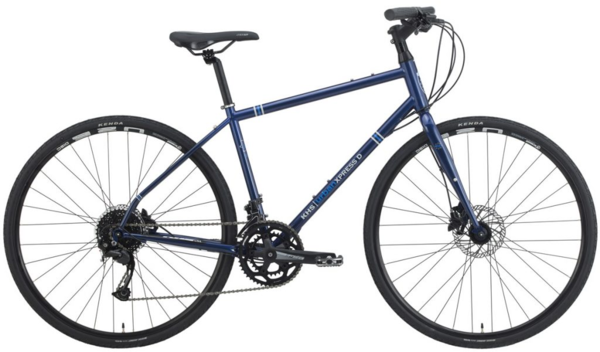

KHS Urban Xpress Disc

KHS Urban Xpress Disc
Color: Dark Blue
Size: Select size
Please select options Unavailable


- 18-speed
- 520 Reynolds CrMo steel frame
- Shimano hydraulic disc brakes
- Internal cable routing
- microSHIFT FD-T392B front derailleur
- Shimano Alivio M3100 rear derailleur
- Shimano Alivio M3100 shifters


Frame 4130 Dbl Butted CrMo Tubing and Carrier Bosses, Forged Disc Mount
Fork Hi-Tensile Unicrown, Disc, Post mount, Straight Blade
Rims Weinmann U26 Disc, 700x32H, Double Wall
Hubs Front: KT Alloy Disc, QR w/Rubber Seal
Rear: KT Alloy Disc, QR w/Rubber Seal, Cassette
Spokes 14G Stainless Black, 32x32
Tires Kenda Keen, 700x35 w/K-Shield
Bottom Bracket Cartridge Bearing
Crankset Shimano FC-TY301, 48/38/28T, 170mm
Shifters MicroShift TS39, 3x8 Trigger
Front Derailleur Shimano FD-TY710, 28.6
Rear Derailleur Shimano Altus M310
Cassette/Freewheel Shimano CS-HG31-8, 11-34T, 8-speed
Chain KMC Z8.3
Brakes Bengal Cable Disc, MB606, 160mm Wave12 Rotors, w/ABS System
Brake Levers Promax Alloy Linear Pull Trekking, 3 Finger
Handlebars Alloy Trekking, 630mm, 31.8
Tape/Grips Q2 Ergo Lock-On, Dual Density
Stem KHS Alloy Threadless, 25D, 4-bolt, S-M: 90mm, L: 105mm, XL-XXL: 120mm
Headset Threadless 1-1/8", Zero Stack
Seatpost Alloy Micro-adjust, 27.2x350mm
Saddle KHS Ultra Comfort, Soft Shell
Pedals Wellgo Platform w/Non-slip Tread, DU Bearings

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dark Blue / Large 756928926365 911860002 210000013797
Dark Blue / X-Large 756928926372 911860003 210000013798
